Architecture

This page covers the internals of the Iggy server: how work is scheduled across CPU cores, how requests are routed, and how data ends up on disk. If you're looking for the domain model (streams, topics, partitions, consumer groups, message format), see concepts first.

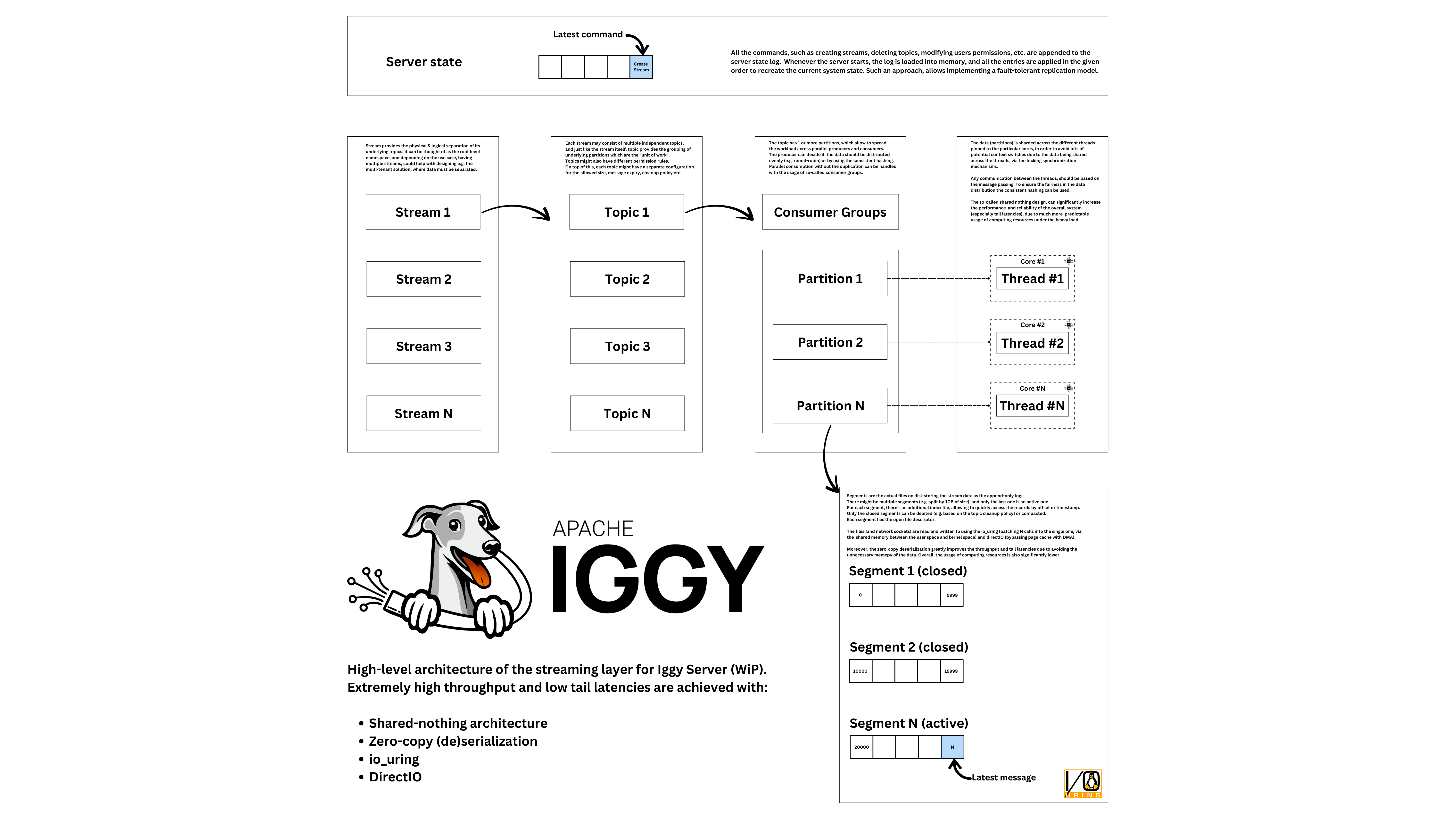

How a message flows through Iggy

Before diving into the architecture details, here's an overview of a message's journey from client to disk:

Thread per core (shared nothing) + io_uring

Iggy uses a thread-per-core shared nothing architecture combined with io_uring for maximum performance. This design has been proven by systems like ScyllaDB and Redpanda, both built on the Seastar framework.

How it works

Each configured shard (an instance of IggyShard) has its own single-threaded compio async runtime. With pin_cores = true, Linux shard threads are pinned to their selected CPUs via sched_setaffinity. NUMA allocation modes also bind memory via hwlocality. Setting pin_cores = false disables both bindings; shared metadata and inter-shard communication still require synchronization.

Shard roles and connection distribution

Shard 0 has a special role: it binds every listener - the replica plane and all client transports (TCP, QUIC, WebSocket, HTTP). Connections are then spread across shards at accept time:

• TCP and WebSocket connections, plaintext or TLS, are handed off round-robin across the shards. Shard 0's coordinator duplicates the socket's file descriptor, ships a connection-setup frame to the target shard, and drops its own handle, so the owning shard serves the connection from then on - before a single byte is read. For TLS-wrapped TCP and secure WebSocket (WSS), the target shard runs the TLS handshake. Shard 0 is part of the rotation by default; skip_shard_zero_for_clients = true under [cluster.coordinator] takes it out.
• QUIC connections stay on shard 0, installed through its UDP endpoint. HTTP is also served on shard 0.

All shards, including shard 0, own partitions and serve partition requests.

Request routing

Requests are routed between shards using message passing (via crossfire bounded mpsc channels), so partition state remains on its owning shard. The routing logic splits operations into two planes:

• Metadata operations (create/delete stream/topic/user etc.) always execute on shard 0 - it is the only shard that commits metadata
• Partition operations (send_messages, poll_messages, store_consumer_offset) are routed to the shard owning that partition via a lock-free concurrent map lookup. The request is sent into the owning shard's channel, whichever shard received it

Partition-to-shard assignment is deterministic: the packed IggyNamespace is hashed with Murmur3, and the upper 16 bits of the hash are taken modulo the shard count (the upper bits are used because Murmur3 has weak lower bits for small integer inputs).

IggyNamespace

The IggyNamespace packs stream_id (20 bits), topic_id (12 bits), and partition_id (20 bits) into a single u64 for efficient hashing and routing. This gives maximums of 1,048,576 streams, 4096 topics per stream, and 1,000,000 partitions per topic.

CPU allocation modes

The sharding system supports multiple allocation modes via the cpu_allocation config:

• "all" - one shard per available CPU core
• A numeric value (e.g. 4) - exactly N shards, pinned to the first N CPUs in the process's allowed CPU set when pinning is enabled
• A range (e.g. "5..8") - shards on CPUs 5, 6 and 7 when pinning is enabled; those CPUs must be allowed for the process
• "numa:auto" - automatically detect NUMA topology and select physical cores, avoiding sibling hyperthreads
• "numa:nodes=0,1;cores=4;no_ht=true" - explicit NUMA nodes, with the same number of cores taken from each listed node and hyperthread avoidance

io_uring and compio

Traditional async runtimes like tokio use epoll which is readiness-based - you ask the kernel "is this file descriptor ready?" and then perform the I/O yourself. Regular files cannot be registered with epoll. Tokio runs file I/O on a blocking thread pool that grows on demand (up to 512 threads by default, configurable). This does not scale well.

io_uring is completion-based - you submit I/O requests to a submission queue (SQ), and the kernel completes them and places results in a completion queue (CQ). Both queues are shared ring buffers between user space and kernel. Submissions and completions can be batched to reduce syscalls. This is fundamentally better for disk I/O.

Iggy uses compio as its async runtime, which provides a driver-disaggregated architecture on top of io_uring (Linux) and IOCP (Windows). Each shard gets its own compio executor configured with:

• Capacity: an io_uring submission queue of 4096 entries (by default)
• Event interval: poll the I/O driver after 128 scheduler ticks (roughly task polls) by default
• Cooperative task running enabled

IGGY_SHARD_RUNTIME_CAPACITY and IGGY_SHARD_EVENT_INTERVAL override the two numeric defaults. On macOS, compio uses its polling driver and a blocking pool for file I/O.

Performance: Tokio vs Thread-per-Core

The historical migration benchmarks compared v0.5.0 with v0.7.0 at approximately 1,000 MB/s per node. The chart shows selected latency reductions for 8, 16 and 32 producers, each using its own stream. The 8-producer case also reported higher P95 and P99 latency; these are not measurements of 0.9.0:

Left-right metadata

Shared metadata (streams, topics, consumer groups) uses a left-right concurrent data structure. Shard 0 holds the single write handle and is the only shard that commits metadata mutations, while every shard holds a read handle. This provides:

• Lock-free reads on all shards (no contention on the hot path)
• Strongly consistent writes serialized through shard 0

Clustering

The server is built on the Viewstamped Replication (VSR) consensus protocol. Metadata operations are committed through the VSR write-ahead log even on a single node, which is the default deployment. Multi-node clustering is enabled via the [cluster] configuration (a node roster plus --replica-id to pick the local entry). See clustering for the details and maturity caveats.

Storage structure

Having in mind that stream consists of topics, which might have one or more partitions assigned, and each partition consists of segments, we can visualize the structure of the Iggy data directory as follows:

local_data/
├── metadata/
│   └── journal.wal
├── runtime/
│   └── current_config.toml
├── logs/
│   └── iggy-server.log
├── state/
│   └── log
└── streams/
    └── 0/
        └── topics/
            └── 0/
                └── partitions/
                    └── 0/
                        ├── 00000000000000000000.index
                        ├── 00000000000000000000.log
                        ├── superblock.a
                        └── offsets/
                            ├── consumers/
                            └── groups/

This example shows a fresh partition with the default paths. The stream, topic and partition directories are named after their numeric IDs, assigned from 0. The metadata/journal.wal file is the VSR write-ahead log for metadata operations (stream/topic/user creation, etc.). Its index has 1024 slots by default (journal_slots under [metadata]). Before they run out, the server checkpoints the metadata into metadata/snapshot.bin, records the checkpoint in a superblock under metadata/, and drops the checkpointed operations from the log. On a single node, neither file exists until the first checkpoint. The runtime/current_config.toml file is rewritten at every boot with the configuration the server booted with and the addresses it actually bound. Secrets (the JWT secrets, the encryption key and the cluster shared secret) are left out. The state/log file is empty; the server creates it at boot and does not otherwise use it. Segment files are named by their 20-digit start offset. Recovery can create an empty active segment at a reserved offset beyond the last stored message; partition superblocks record the recovery frontiers. A superblock is written to two files in turn, superblock.a and superblock.b. A fresh partition has only superblock.a; superblock.b appears at the next superblock write, for example after a restart or a topic purge. The .index file is created automatically and speeds up searches by keeping track of the offsets and timestamps of the records. The offsets/ directory holds the server-side consumer and consumer group offsets.

Memory pool

Iggy uses a custom memory pool with 28 buckets holding buffer sizes from 4 KiB to 512 MiB. The default pool size is 4 GiB with up to 8192 buffers per bucket. Buffers are allocated on demand and reused; requests that exceed the pool budget can allocate outside it. Frozen buffers can be shared between components without copying their contents. The pool is page-aligned (4096-byte multiples) and requires a minimum of 512 MiB.

Write pipeline

Messages flow through a multi-stage write pipeline:

1. Messages arrive on the owning shard and are buffered in the partition journal.
2. Partition VSR replicates prepares. With durability=persisted, a multi-replica group requires recoverable prepare-WAL copies at the replication quorum before commit.
3. Awaited writes apply committed operations before success is returned. A singleton with durability=persisted synchronizes local segment state before replying.
4. Ordinary segment writes use per-topic count and byte thresholds (defaults: 1024 messages, 1 MiB); required persistence, capacity pressure, and lifecycle work can flush earlier. The MessagesWriter uses vectored I/O in chunks of up to 1024 buffers. Partial writes can require more than one I/O submission.
5. When a segment reaches or passes the topic's segment size (default 1 GiB), it is sealed and a new segment is created. The batch that crosses the size is written whole, so a sealed segment can exceed it by up to one batch.

Message durability and consumer_offset_durability default independently to replicated. Both policies write data to disk; persisted adds a stable-storage requirement at completion. See Durability.
